Walker Basketball National Fitness Air Dome Project
Share:
Project Overview

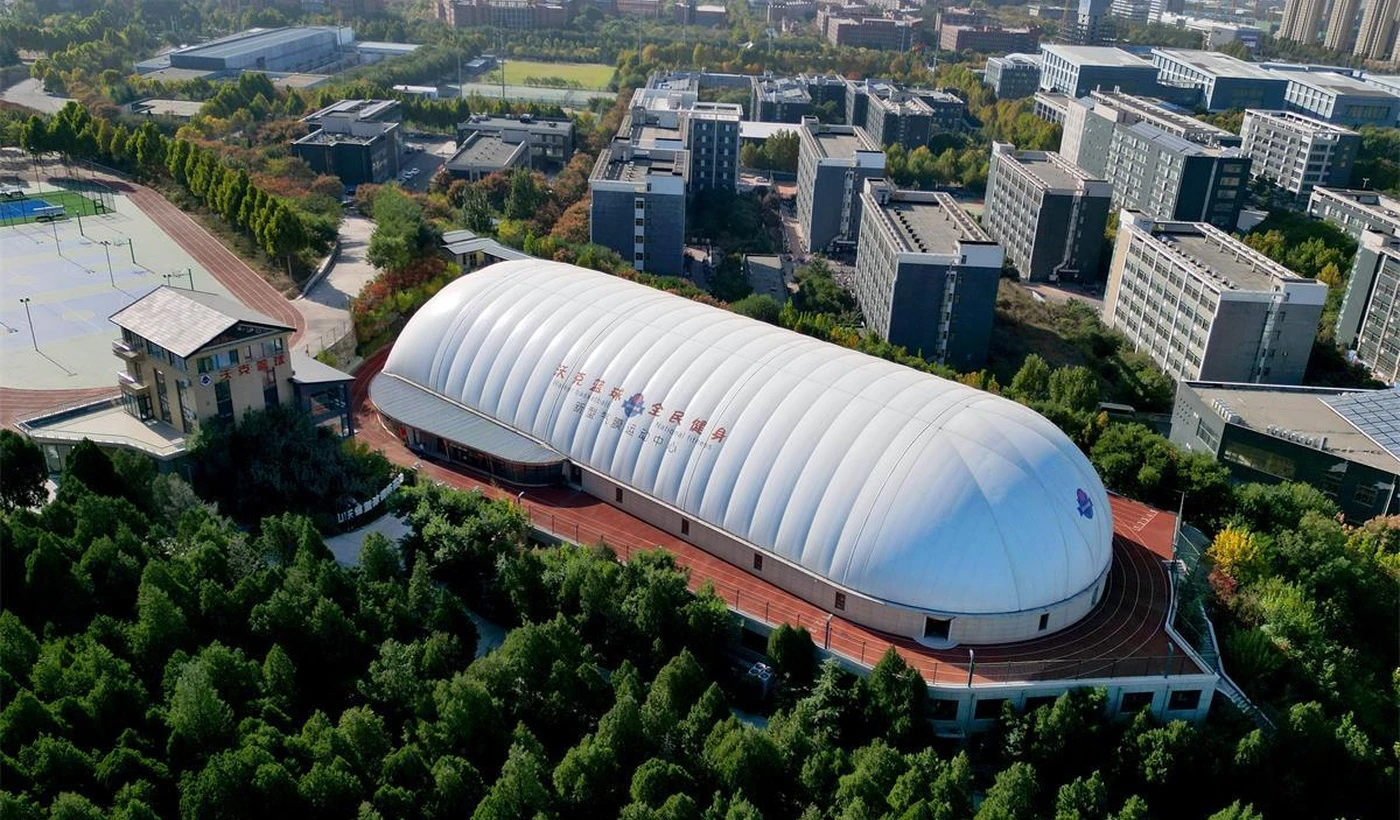

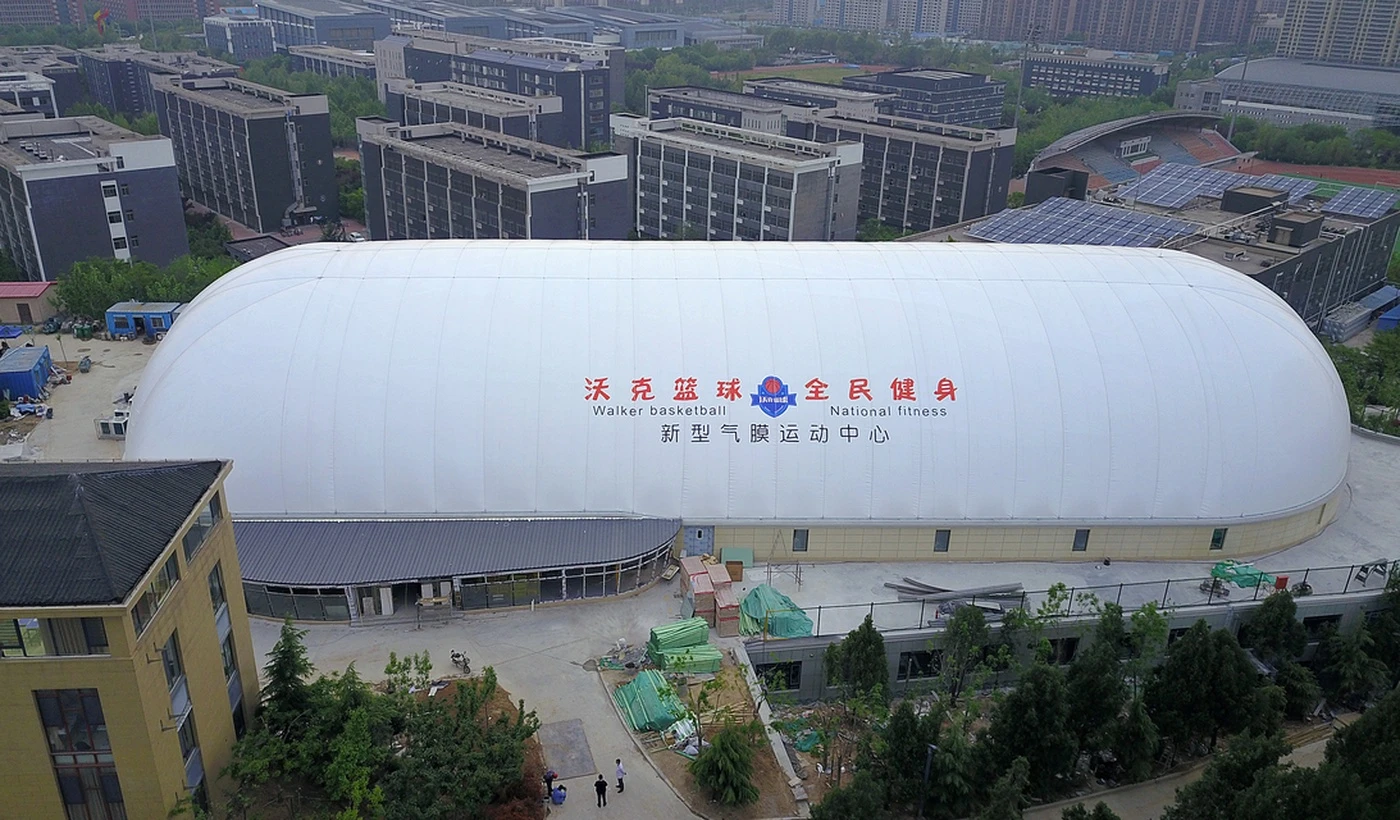

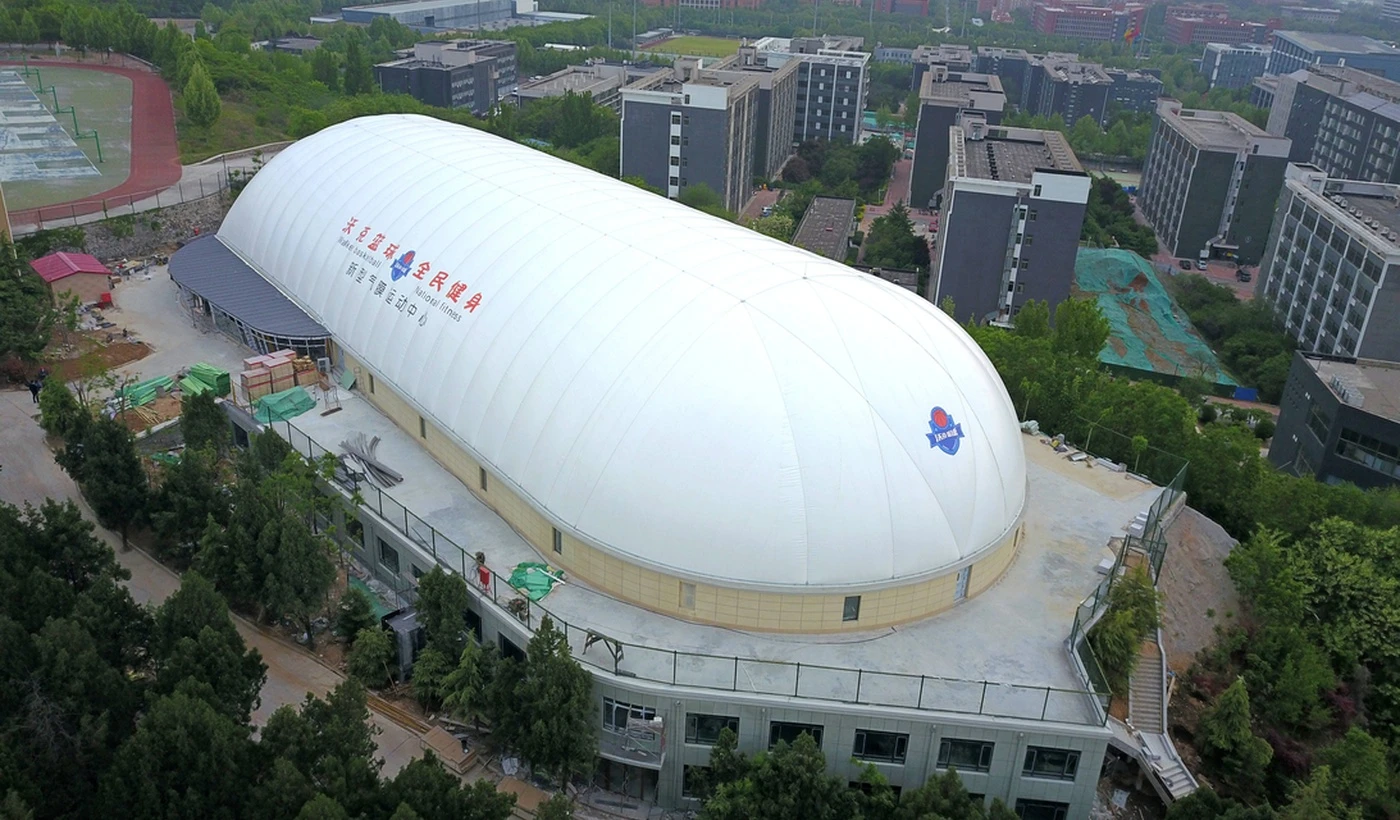

Walker Sports, a well-known national fitness operator, plans to build a professional air-supported basketball stadium in Qingdao in response to the national "Fitness for All" initiative, to meet the basketball needs of citizens. The project is located next to a city park, covering an area of approximately 3,000 square meters, and is expected to accommodate four standard basketball courts simultaneously.
Challenges
01
The project site is located next to a city park, which places extremely high demands on the building's appearance and environmental performance, and must not damage the surrounding ecological environment;
02
Basketball requires strict conditions regarding the flatness of the court, indoor lighting, and ventilation.
03
Construction costs need to be controlled to ensure that the project has a good rate of return on investment.
Solution

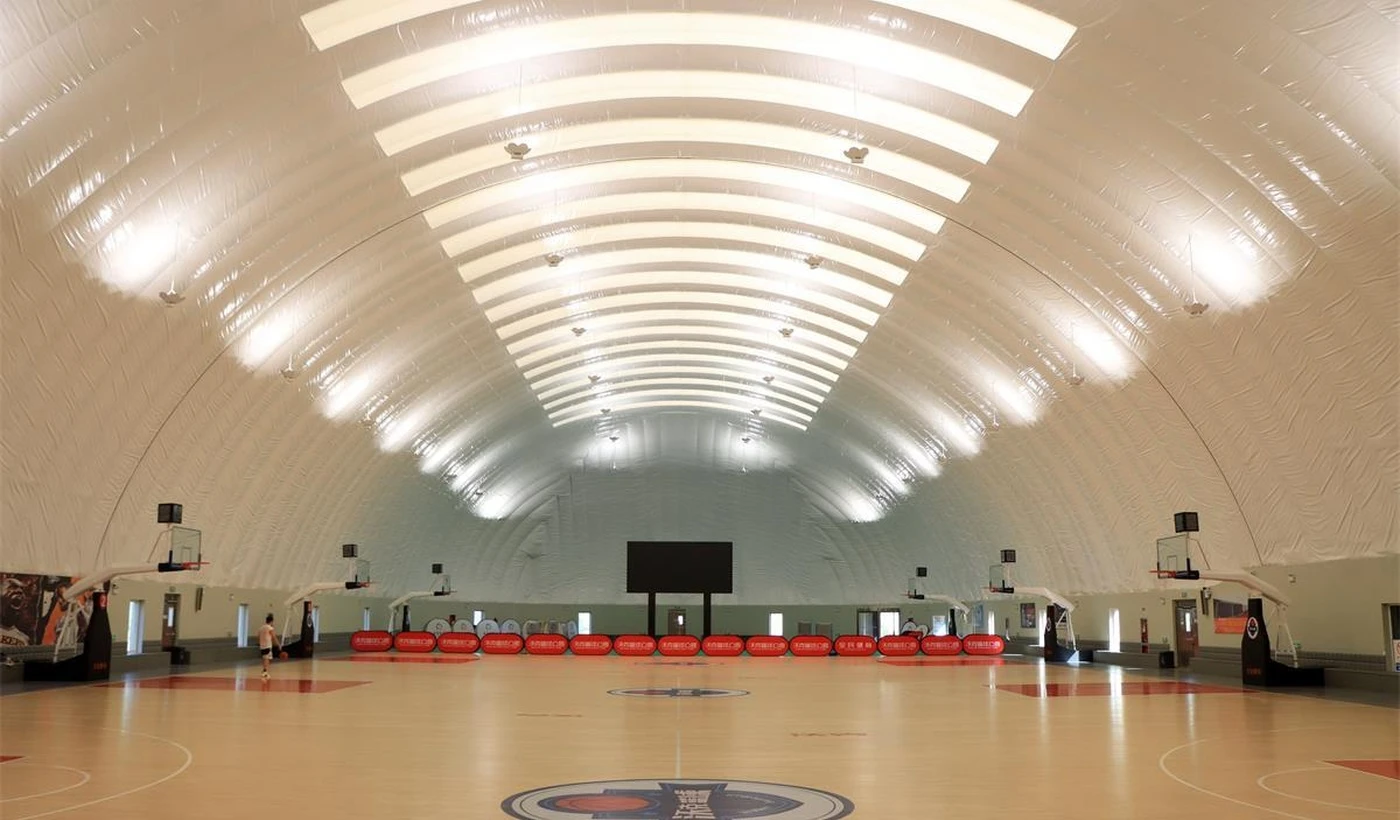

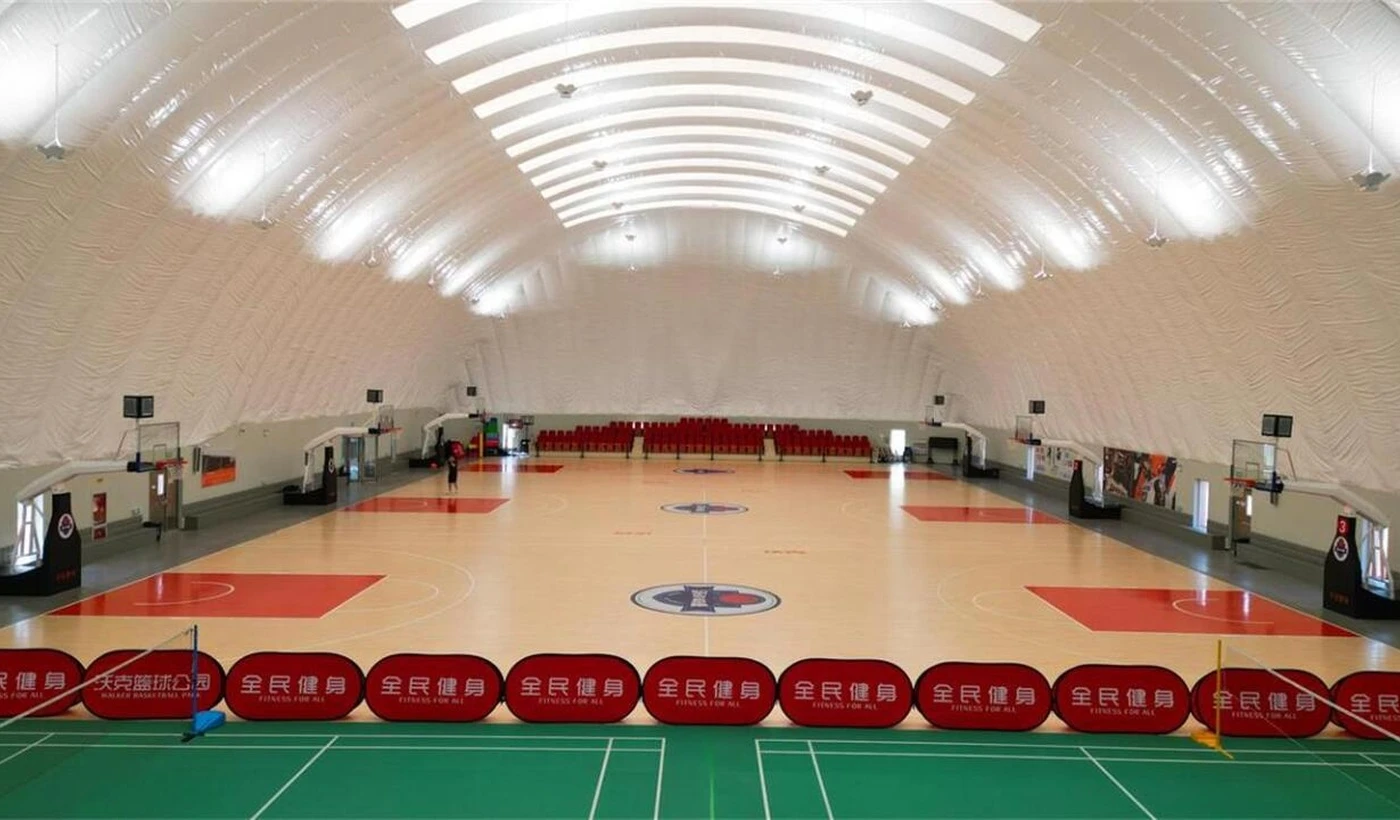

Supai customized the SP-SP30 sports-specific air-supported dome system for them. This system uses environmentally friendly PVDF membrane material, which is 100% recyclable; it is equipped with a professional sports field lighting system, achieving an illuminance of 1500 lux, meeting the requirements of professional basketball games; and it employs an intelligent ventilation system that automatically adjusts the ventilation volume according to the number of people inside. A highlight of the solution is its "double-layer membrane structure," which possesses excellent thermal insulation performance, maintaining a comfortable indoor temperature even in cold winters. Furthermore, the streamlined design of the air-supported dome system blends perfectly with the surrounding park environment.
Project Data
|
Project Name |
Place |
Completion Time |
Span |
Length |
Area |
Membrane Material Type |
Wind Resistance Level |
Special Configuration |
|
Walker Basketball National Fitness Air Dome Project |
Qingdao, Shandong |
December 2024 |
50 meters |
60 meters |
3000 square meters |
Environmentally friendly PVDF membrane material |
Level 11 |
Professional sports lighting system, double-layer thermal insulation membrane structure |
Outcomes
The indoor temperature is maintained at 18-26℃ year-round.
The uniformity of illumination reached 0.85;
Construction costs are 50% lower than traditional stadiums;
The number of sports visitors received annually exceeded 50,000.
The operating energy consumption is reduced by 35% compared to traditional stadiums.
Testimonial
"The air-supported membrane basketball hall has become a popular destination for basketball lovers in the city. Its excellent sports facilities and comfortable environment have won high praise from our customers."
